Most of the first mobile transceivers, like the Heathkit HW32 should left, were often bulky in size, heavy in weight, and not very efficient overall. Most were tubes, but by the mid 70s, all solid state models, like the Atlas 180 shown right, were becoming the norm.
Today's transceivers are often smaller than yesteryear's DC power supplies, certainly lighter, and are considerably better with respect to receiver specs. Icom has sold nearly 75,000 IC-706 models in several iterations, and Yaesu's FT-857 is also popular.
Modern transceivers are more capable, in that their frequency coverage is often 160 through 450 MHz, and most models are remotable. Their light weight control head makes mounting easier, while the rest of the transceiver can be mounted out of the way under a seat or even in the trunk. Trunk mounting adds complexity to the DC and control wiring, but is preferred in most cases. If you do remote yours, read this article on cabling, and this one on wiring.
There are several drawbacks to miniaturization. The controls are also miniaturized making it difficult for large fingered folks to do the adjusting, which says nothing about doing it while under way. The front panel real estate is at a premium which means some controls serve multiple purposes and readouts become difficult to see. All of this requires the use of menus further frustrating the average user.
Impedance matching can present a problem too, as all solid state transceivers are designed for 50 ohm, non reactive loads. As the SWR climbs, so does the level of IMD (Inter Modulation Distortion), hence impedance matching becomes a necessity. This subject is covered in the Antenna Matching article.
Of all the current made-for-mobile radios use some form of DSP (digital signal processing). All are audio based except the Icom IC-7000, and FT-450D. While most AF based ones give a good account of themselves, digital DSP is a step above. However, all of them produce some distortion in the receive audio, especially if incorrectly adjusted. Therefore, attempting to overcome an excessive level of egressed RFI isn't as productive as addressing the RFI problem first hand with proper noise suppression.
This brings up another issue, and that is sensitivity. Even on a very quiet band, the background noise level will be many dB above the nominal sensitivity of even an inexpensive transceiver. In fact, any sensitivity greater than about -115 dB or so is plenty enough. What is needed, is selectivity, and for two, closely related reasons.
First, if the selectivity is lacking, nearby stations can overload the various internal circuits (RF, IF, and even audio ones). All of this make copying the station you're trying to work, very difficult, sensitivity notwithstanding. In fact, too much sensitivity can add insult to injury. That's why receivers used to have RF gain controls. Problem is nowadays, that RF gain control is actually an IF gain control. About all that can be done is to kick in an attenuator. If that attenuator is IF based, as most are, even that won't help to increase selectivity.
As a general rule, receivers which use crystal-lattice (discrete filters, roofing, and IF) tend to have better selectivity that those with just DSP. This said, some of the higher end DSP only transceivers rival their crystal-laden competition. But when it comes to mobile operation, we're sort of stuck choosing one over the other. Pundits always argue that crystal-lattice always beats any DSP, but that's carrying things a bit far. What really counts is what happens in the real world. This is why it is so important to choose your hardware based on personal experience, not on someone else's opinion!
I mention this in my Audio Transmit article, but it bears repeating here. There are at least three enterprising amateurs modifying stock microphones (primarily the Icom HM-151) with the supposition of improved audio quality, and output level. If you use the stock microphone correctly as described in the article, there is no need for any modifications. If you're buying a used radio, you always want to ask about these types of mods, as returning the radio to factory specs often requires a new (≈$100) microphone.
Here is the best advice you'll ever receive when you're in the market to purchase a new (or used) transceiver; Don't ask anyone for their opinion! Instead, go to your nearest dealer and play with the radio(s) first hand. No matter the brand, no matter the model, there are always drawbacks to every transceiver. Whether these drawbacks present a problem for you personally, depends on the type of operating you do.
In every mobile installation, the amount (severity if you like) of egressed (and ingressed) RFI, varies widely even between identical models. Some vehicles just can't be suppressed enough for weak-signal communications, and thus users resort to a transceiver with a decent noise blanker. Believe it or not, the aforementioned Atlas series had one of the best noise blankers available at the time, and rivals some of the late-model ones, adjustability notwithstanding. However, the only problem with most noise blankers is their effect on receiver dynamics (noise floor, blocking, etc.). What's more, you really can't test them on the bench, in a retail outlet, or believe on-line reviews of same, as alluded to in the first sentence. Just remember this bit of advice. If you cannot operate without using the noise blanker on any band, you need to rethink your suppression efforts.
Sooner or later, every transceiver on the market will become obsolete, but that's not all. For example, the original Icom IC-706 was introduced in 1995. It has gone through several iterations, upgrades if you please, until it was discontinued in 2010. Hidden below the surface, are the numerous internal changes necessitated by discontinued parts. As a result, any given two, identical appearing, IC-706's, might have different finals. Whether those finals remain available is moot. Icom is not alone in this dilemma, as other manufacturers have been forced to do likewise. This brings up an important point.
If you're buying a used transceiver, you want to make sure it is operating correctly for very obvious reasons. This more or less eliminates using one of the on-line auction sites to buy used gear. While most sellers are honest, far too many are not, leaving you with an unrepairable transceiver! And even if it is repairable, it may well indeed cost more to repair it than it is worth, or what you paid for it in the first place.
Making matters worse, few manufacturers published incremental changes, unless it is a significant upgrade. On-line serial number references are often misleading or incomplete, and asking the manufacturer directly is typically unrewarding.
I don't wish to discourage anyone from buying used gear in good operating condition. I do however encourage folks to go to their nearest dealer, and try out any used (or new for that matter) gear they may have. AES, HRO, R&L, Universal, and many others stand behind their gear they sell, new or used. But do yourself a favor. Don't buy any gear older than about 5 years of age, unless you're capable of repairing it yourself! If you're not , don't buy it!
The newest offering from Alinco is their new DX-SR8T. It is an all-mode transceiver, covering 160 through 10 meters, and has 600 memories! It's even got CTCSS for FM buffs. It's being advertised as a base station radio with mobile capabilities, but with a street price of just over $625 including the separation cable, it's an attractive alternative for folks on a limited budget.
At first blush, it would appear to have some quirky features until you think about them. For example, there is no rear panel speaker jack. It's located on the front of the remote head, just below a build in, front firing speaker. There's even a separate headphone jack! However, the audio amplifier is rated at just 2 watts, it remains to be seen if it is adequate for a noisy mobile installations.
The speaker jack doubles as a cloning port, so you can transfer memories from one SR8 to another. It can also be connected to a computer. More information on this is in the manual, and on their web site, respectively.
For me personally, it has one flaw. How minor (major for me), depends on your installation. That is to say, the VFO knob is very easy to rotate. There is no adjustable drag, nor does it have a stepped detent like its competitors. All is not lost, however. The remote cable between the head, and the main unit is a CAT5. But.... I suggest you use the factory supplied cable which comes with the mobile mounting package. The modular connector is moulded on, and is constructed of stranded wire! Remember, using solid conductor cable in a mobile scenario is always going to be problematic!
The microphone gain adjustment is internal, and requires the cover to be removed to adjust it. The truth is, this is not such a bad idea, as typically microphone gains are set and forget. There is a speech compressor built in too, and it can even be used with FM (which isn't such a good idea). I'll give Alinco credit, however, because of this little blurb in the manual; Talking close to the microphone, too loud or using linear amplifier while compressor is ON, the modulation may be distorted or transmits splatter to bother other communications. Of course close talking is required if you want to limit background noise with an appropriate lowering of the microphone gain setting.
It does not have any type of DSP, but it does have an IF shift function. While good, it might behoove some users to purchase an audio-based DSP speaker. The link list several different brands.
The adjustable brightness LCD is back lit, and is black on a very light gray background, making it easy to see in most cases. It can, however, washout in direct sunlight. The head is 9.5x4 inches, so the controls are far enough apart even for fat-fingers. There are back-panel connections for ALC, and amplifier keying, but a keying buffer will be required in most cases.
The rest of the radio is more or less basic stuff, and it well covered in the manual. By the way, while the manual is well written, there's still some Engrish to plow through.
Some may argue that the SR8 isn't a full-featured transceiver. Well, it isn't! It is, however, a well-designed, 160 through 10 mobile transceiver. If you don't need (or want) 6 meters and above, it is a worthy competitor in many respects. One thing is for sure, you can't argue about the price!

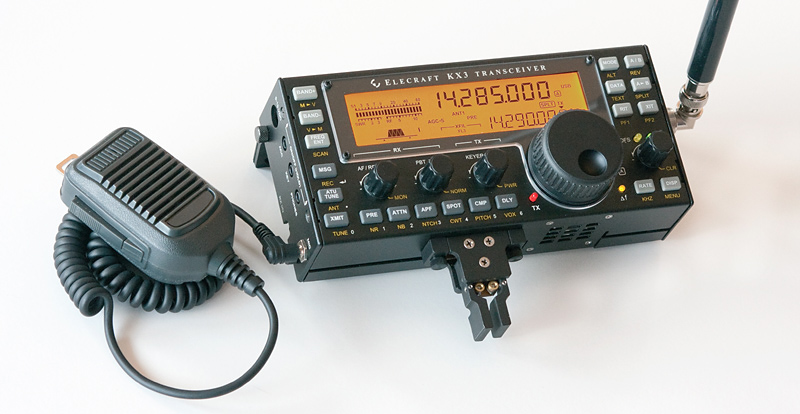

The Elecraft® KX3 is one of the latest miniaturized offerings. It is really designed as a portable, but I'm sure it will find a mobile following. It currently is available only in a 10 watt version, but an amplifier (KXPA100 amp) is coming in the near future. The KX3 has some unique features besides is very small size, and light weight (1.6 pounds). It has an advanced DSP replete with noise reduction, a dual watch feature (a great contesting tool), a noise blanker, an auto-notch, and stereo audio effects. The latter allows listening to both dual watch channels. It also has a roofing filter, all mode operation, and 160 through 6 meter coverage (a 2 meter module is coming). Pricing starts at $900 without accessories. If you need in-depth information, visit their KX3 web site.

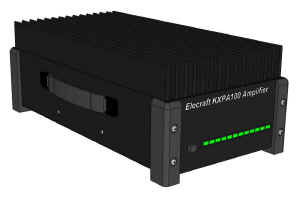

Just as intriguing, is the KXPA100 amplifier. Elecraft advertises it as a home/mobile amplifier which seamlessly integrates with the KX3 as well as other popular 5- to 10-W transceivers. An optional ATU with dual antenna jacks will also be offered. Pricing on the amplifier hasn't been released (as of March 2012). Nonetheless, it will be interesting to see how the popularity of this transceiver progresses.
Elecraft has posted and on-line mobile installation manual, apparently written by one of their employees. It has so many installation errors, it is hard to know where to start. Probably the most egregious, is the method and placement of the transceiver in the vehicle. Please! Do not follow the advice given!
The KX3 is certainly a capable all-mode transceiver, and it's dual watch-stereo features will surely make it a portable contesters dream. Obviously, these extra features increase the bottom line, and limit the mobile appeal. Installing a separate amplifier unit isn't much different than installing a remotable transceiver like an Icom IC7000 which is a good thing. However, we'll have to wait on pricing for the KXPA100 (≈$300 to $400, I'm guessing here), and to discover how seamlessly it integrates. This said, if Elecraft is up to their usual snuff, it will be an easy set up.
The IC-706 in its various iterations has become the most popular amateur transceiver, ever! After the introduction of the IC-7000, many thought Icom would drop the 706 from its product line. However, it has remained so popular, Icom was still manufacturing it in its latest form, the IC-706MkIIg, until March of 2010 when it was finally discontinued. Its ≈$900 price tag replete with remote mounting kit, is certainly one reason for its popularity. It should be considered a legacy transceiver at this point because of the scarcity of finals (earlier models), and the requirement to purchase a complete RF board (later models), not just the finals.
It covers 160 meters through 450 (MkII versions), has extended general coverage receive, and supports both FSK and AFSK. One interesting feature with obvious benefits is its separate power output adjustments for HF, 6 meters, 2 meters, and the 70 cm bands. It even has a built in CW keyer, which can be keyed by the microphone's up and down frequency buttons. It has the usual complements of FM, AM, splits, auto-repeat off sets, ninety nine memory channels, and a very capable audio-based DSP. Like a lot of miniaturized radios, it requires an interface buffer to key a power amplifier (except for the SG500 and THP 450HL). The IC-706 has one unique feature, and that is a BFO offset (-200 to +200 Hz). This allows tailoring the transmit frequency to one's voice characteristics.
The IC-706 also gets very warm during use, and good ventilation is a necessity. As a result, some enterprising amateurs have added fans to the heatsink, and there has even been an article or two on the subject. Nonetheless, there is no concrete proof this elongates life.
One would think that some amateurs believe they are smarter than the engineers who design transceivers for a living, and the various Internet-posted fan mods are prima facie examples. Transceivers should be mounted in a location with adequate ventilation (using the supplied mounting bracket). Although modern transceivers have built in final protection circuitry, including high temperature, and high SWR, there is just so much abuse finals can take. If the truth be known, the most prevalent cause of final failure would be transmitting into an open load at full power. Shorted loads would be second. Both of these relate directly to improper installation of coaxial connectors and/or the use of solid center conductor coax cable. There is more on the heat issue below.
The Icom IC-7000 has innovations that place it a head above the competition in many ways. Aside from its advanced IF DSP, Icom has done a good job of answering the common complaints with respect to menu selection, and the buttons used there in. It is slightly smaller in length than the 706, has a color display, a built-in speech synthesizer, and enough memories for to keep anyone happy. The street price is $1,299 which is a bargain considering its overall capabilities. The remote kit is $110 (currently included).
The IC-7000 got a bad rap when it was first introduced with respect to a high-pitched squeal when headsets were used. It was eventually traced to an incorrectly placed grounding clip. Apparently, this occurred when the radios were modified to meet FCC rules about not receiving VHF TV stations. Sort of a moot point now that all TV stations are digital.
If you believe the retailers, the IC-7000 is selling at about the same pace the IC-706 did. If the trend continues, it could become the best selling radio, ever. However, its got a long way to go to catch up with its stable mate IC-706 in its various configurations.
The power cable is the newer style four pin, and the matching power supply is a PS126. There are adapter cables from Icom (and the after-market) available, so interfacing to the PS-125 is easy. The DC power cable fuses have been moved to the battery end where they belong.
The PTT keying capabilities of the 7000 is now 200 mils (the 706 is just 20 mils). While this fact still requires a buffer interface to key most amplifiers (the SGC SG500, and THP HL-450B are exceptions), it is a step in the right direction. Incidentally, the 13 pin accessory plug shipped with the Icom comes equipped with pigtails for some odd reason. However, late-model Kenwoods use the same plug, so most amateur suppliers carry them. The plug sells for about $8.
The Icom IC-7000, stock out of the box, does not send live TouchTones®. Rather, it uses one of just four, preprogrammed memory locations. If you operate through the MegaLink® system, this is a big drawback. For me personally, it isn't, as I do very little FM work. Remember the old adage; it is always better to buy right, than twice!
If you have a need for live TouchTones®, and you're adept at building and adapting, you might look at Pipo Pads. Some models even have PTT built in, making their use much easier. They've been in business since 1976, and offer excellent customer service.
A lot of amateurs are adding video input devices to their Navi units as a means of displaying the front panel. It works, but if the display is larger than 7 inches, the lettering starts to be rather blotchy looking, especially if you use the alternate fonts. If you're in the market for a Navi video adapter, I suggest you look at the TV&Nav2Go system. It retails for $225 plus shipping, or about half what competing brands sell for. It is a small box about 4 inches square, and about 1 inch thick. The instructions are nearly worthless, but the unit is so simple it isn't difficult to install. Just remember to solder the green wire to its companion ground, and not to the parking brake as indicated. It requires 13.8 VDC even if you aren't using it to display the front panel, so some form of power switching will be necessary.
The TV&Nav2Go supports a backup camera too (see Soundstorm® camera right), and models for just about any Navi are available. By the way, the Soundstorm® camera displays the image as if you were viewing via a rear view mirror. It is a little disconcerting at first, but you get used to it fairly quickly. You can't complain too much, as the camera costs less than $25, and it is full color no less! At .5 Lux, it is also rather sensitive, and gives full-color images in light levels most people can't see to navigate. It is available from a variety of on line sources.
All is not rosy, however, as there are a few things the 7000 can't do, that the 706 can. For example, pin three on any Icom microphone jack is audio out. This allows the use of a headset like the Heil Traveler® without resorting to an adapter cable. But on the IC-7000, pin three is the sense for the HM-151 microphone supplied with the radio. Since the IC-7000 has internal solder pads incorporated in the microphone circuitry, it is possible to change the microphone configuration to that of the IC-706, where as Pin 3 becomes an audio out. Icom does not mention this in their Owners Manual, but the pads are clearly shown in the Service Manual, and the included schematic. Be advised, there may be a warranty issue if you do change the pads.
The scan function is more robust in the 7000 (lots more channels, and banks), except for one drawback, which may be a major one for some users. On the 706, the scan function can be set to resume on squelch closure in any scan mode, including Priority Watch. On the 7000, scanning either stops completely, or resumes after 10 seconds depending on the menu setting. The only exception is the Priority Watch channel. The end result is, if you monitor several preset frequencies, you'll miss whatever is said after 10 seconds, or you'll have to restart the scan manually if it is set to stop. Unfortunately, neither of the function keys on the HM-151 can be set to resume the scan function.
The HM-151 does have some good points, however. The microphone has 25 buttons on its face, and while it looks busy at first glance, once you get used to it it is very easy to access the various buttons with your thumb. You can change frequency, bands, filters, VFO or memory, modes, the tune function, and a few other most-used functions. There is also two programmable function keys. Each button can be programmed for one of 21 different commands. Most all of the function would otherwise require accessing the various menus. This is not only a time-saver, it is also less distracting, thus safer.
A few folks may argue about the 7000's poor, close-in, selectivity, and I agree it could be better. The standard of comparison seemingly is the Kenwood TS-480SAT/Hx (see below). While the 480's specs are good, in the real world you need to purchase the 1.8 kHz filter for the 480 to surpass the 7000. This fact needs to be balanced with the 480's lack of VHF/UHF.
If you want the best transmit audio out of an IC-7000, here's a suggestion. Set the transmit audio to Wide position, and set the low frequency setting of the Wide position to 100 Hz. Close talk the microphone (one inch away from your lips), and set the microphone gain at about 7% for the average voice. And, if your were thinking about doing a microphone mod to increase the low frequency content, forget it, as this defeats the HM-151's noise canceling capability; something you don't want to do in a mobile scenario.
If you use an Icom 2KL amplifier, or an Icom AT-500 tuner, or one of the many after-market devices which use the band select voltage for control, you'll have to open up the radio and solder a jumper to activate it. I removed the cover to look at the pad, and I can tell you it won't be easy to do. The fact that Icom states in their owners manual, "Performing this modification is the customers responsibility. Icom does not guarantee the modifications results." The reason for the no guarantee is the fact the Band Voltage is not stable when the radio is battery powered.
Another very important caveat with respect to the IC-7000 (and older IC-706), is to make sure the grounding screw for the remote cable is installed. It is very small (2 mm x 6 mm), and is depicted on page 16, center drawing, Figure 2, in the Owners Manual (reproduced at left). Leave it out, and you're in for major RFI problems. The 706 cable is slightly different (see page 10), but the same caveat applies.
If you own, or plan to purchase, an Icom IC-7000, please read this paragraph carefully. The port on the rear apron of the IC-7000 designed to interface with the AH-4 auto coupler is configured differently than the IC-706 series. Pin 1 (TKEY) input is shared internally with the temperature control circuitry. This pin MUST be left floating (not pulled high). If it isn't, the fan may not come on as required, which can lead to failure of the final transistors! Most devices used to mimic the AH-4, and trick the IC-706 into transmitting 10 watts of carrier are not compatible with the IC-7000. This includes the suggested circuitry from SGC, at least one of the older model screwdriver controllers, and most small tuner modules. In other words, just because it appears to work correctly, it might not. Before using any interface designed for an Icom IC-706, ask the manufacturer if it is fully compatible with an Icom IC-7000.

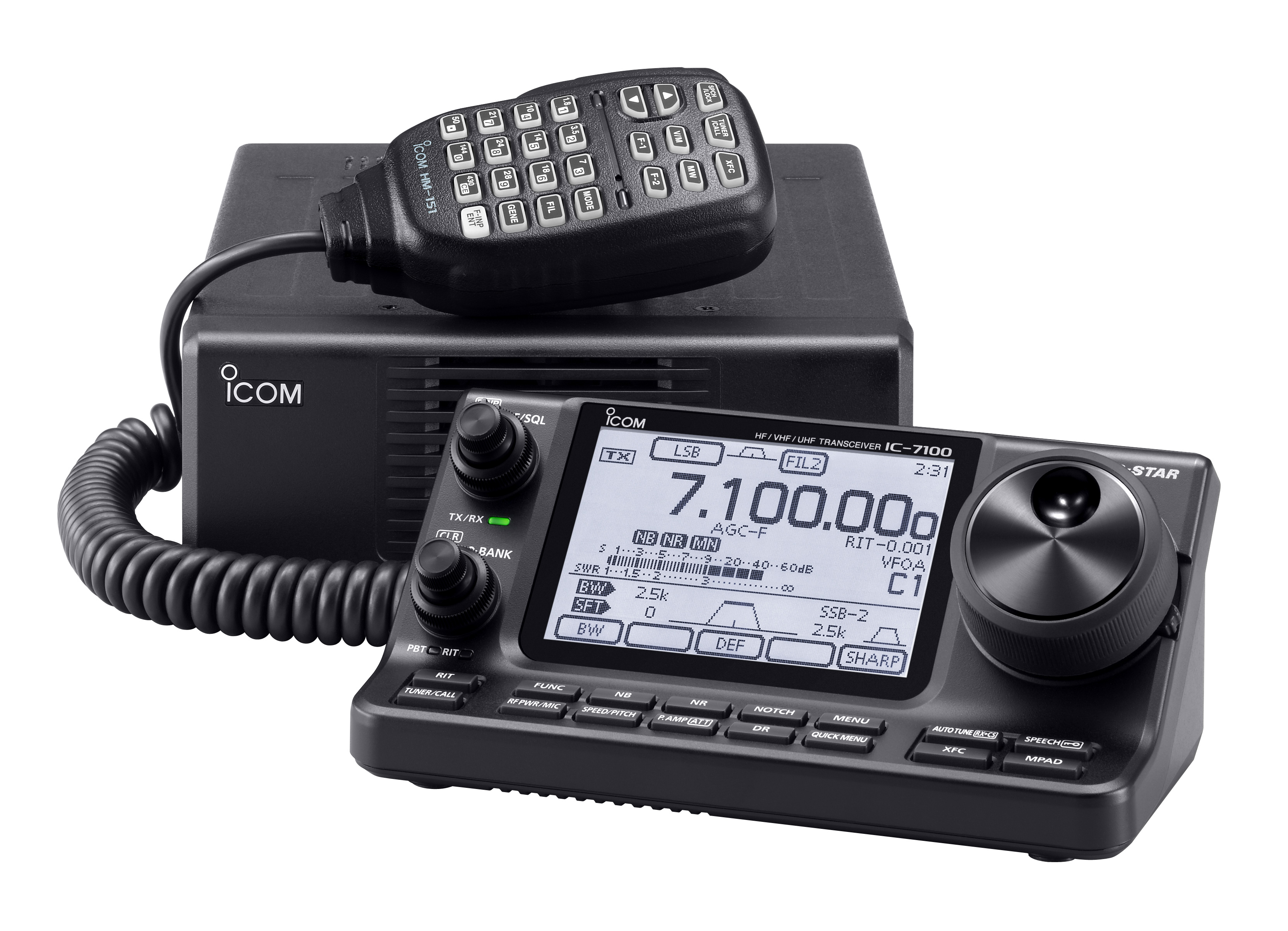

This is the first public photo (click to enlarge) of the yet-to-be-released Icom IC-7100. Just looking at the photo, a few conclusions can be drawn. As rumored, it does have a touch screen as well as 16 labeled buttons. The screen has slightly higher resolution than the IC-7000, a bit larger, strictly black and white. D-Star is standard so the price will hover around $1,600.
Just as interesting is an SD memory card slot which can be used for voice recording, both transmit and receive. The remote-only head has a built in speaker driven by slightly more audio power than is predecessors. The standby current draw is about half that of the IC-7000, which is a welcomed change. The SWR meter now works even on UHF, and the power can be switched off and on remotely, both welcomed additions. I'm not so sure we need 500 memory locations, but it does have a USB port replete with in/out audio and remote control capabilities. The HRD guys will like that! The DSP circuitry has been massaged a bit which is good too.
There are a few things lacking. There is no composite video out like the IC-7000. However, D-Star does support video, and there is a DV (Digital Video) selection in the operating modes menu, even on HF. One would have to conclude that D-Star video would be presented directly on the screen.
We could have used a bit more VHF/UHF power, but that hasn't changed (HF 100, VHF 50, UHF 35). I also suspect the CI-V port address will be different, so some IC-7000 accessories won't work with the IC-7100. Let's hope they improved the NB/AGC loop pumping problem. Unfortunately, there is no roofing filter.
The heft is down too, as the main unit weighs in at just 2.3 kg, or just under 5 pounds. The head is just over a pound. I suspect that is why one of the accessories is a suction cup mount. Be warned however, mounting on the dash or windshield is one of the deadly installation sins—think airbag!
There is one interesting button on the front panel, and that is Auto Tune. I'm not reading anything into this, even though there is also a Tuner/Call button. Auto-tune is an Others menu item on the IC-7000, which is used if you're driving an AH-4 with the transceiver. It could also mean a few other things too, like the auto-tune button for RTTY that other Icom transceiver have. We'll just have to wait and see what shakes out. FCC approval is still pending, so don't hold your breath waiting for a delivery date.
After looking at the IC-7100 at Visalia (2013), I don't believe the IC-7100 is a replacement for the IC-7000, as its marketing push appears to be aimed at the digital mode folks. If you need more information, click on the link above.
The only question I would like to ask the design team... What were you thinking?

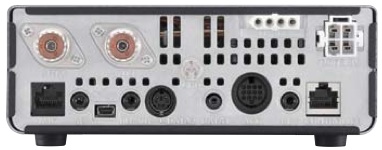

The back panel photos posted on-line, aren't very good. As a result, some of the ports/jacks actual functions leave a lot to one's imagination. Obviously, one of the jacks will be the CI-V port, one the RTTY port (it does decode RTTY), and one a speaker port albeit there in one on the front panel as well.

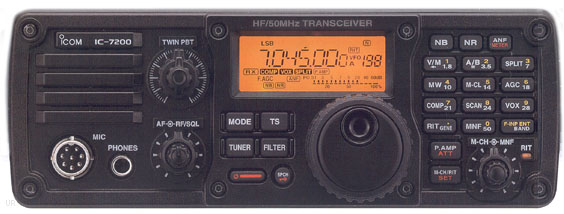

The IC-7200 is a 160 through 6 meter, 100 watt, base station transceiver, but small enough to be used mobile in some (larger) vehicles. Specification-wise, it is almost identical to the IC-7000 (IF DSP for example). However, it lacks video out, a color screen, no VHF/UHF capabilities, and no FM, even on 6 meters!
It has a real PTT relay capable of handling most modern amplifiers (16 vdc, 500 mils, maximum). Its street price is hovering around $1,200, and the mobile mounting bracket is about $30.
Contrary to some popular press, the IC-7200 does indeed have a 6 kHz roofing filter. From a personal (read that as mobile) standpoint, the roofing filter needs to be closer to 3 kHz, and perhaps as low as 2.4 kHz. In any case, it is a step in the right direction. Perhaps Icom will do the same for the 7000.
The IC-7200 is not waterproof, but it is splash proof (what ever that means). Unlike the 7000, it uses a standard 8 pin microphone jack, and will accept a SM-8 base microphone without an adapter cable.

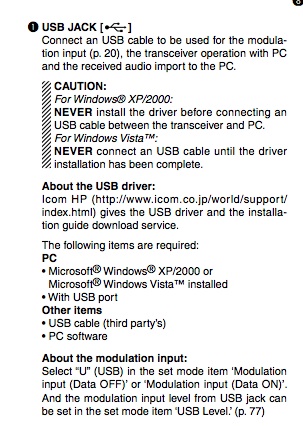

One interesting feature is a USB port on the rear panel. If you click on the owner's manual verbiage at left, you can view a full-sized version (note the difference in procedures depending on the version of Windows you have). One thing is apparent, and that's its lure for all things Field Day. A requisite laptop, a little software, and viola! Sadly, all is not want! The IC-7200 doesn't have voice or CW memories, like the IC-7000 (and later Icom transceivers). However, considering the street pricing, it is still a decent bargain.
Regardless of its size, a few folks are buying the IC-7200 to use mobile. Be advised, most antenna controllers designed for the IC-7000 will not work with the IC-7200, as the CI-V addressing is different.
Lastly, whether folks like the militaristic look (a departure for Icom), only time will tell. From strictly a personal standpoint, I don't like the looks (especially the camo-colored one), but I just may buy one as a backup radio. After all, the price is right, and it has a lot of bang for the buck!
The IC-7000 has been with us for about seven years. It is now available with a camo finish, further adding to its innate militaristic look. Unfortunately, not too many aftermarket suppliers are supporting its USB port features. Part of the issue is a lack of information from Icom about the port's capabilities. It is possible to upgrade the firmware via the USB port, but very little other information is available. You will need the USB driver, and you can download it by clicking the link. The driver supports XP, and later Windows' OS without additional software.
One of the latest entries from Kenwood is the TS-480, which comes in two iterations; a 100 watt version with a built in auto coupler, and a 200 watt version without the coupler. It is poor man's amplifier, as no other mobile radio offers this much power. The street price for the Hx version is $1,100, and the Sx (SAT) $999.
The head, and the main body cannot be connected together (remote only). As with other Kenwood transceivers, the microphone plugs into the main unit, not the head. The cables (control and microphone) have pre-installed split beads to minimize RFI problems. This brings up another potential problem. The option cable extension kit might be needed in some installations. Rather than use CAT5 cables, buy the real deal. If you don't, you'll be plagued by RFI problems.
Calling it a miniature radio is a bit of a misnomer. It is approximately 7 x 2.5 x 10 inches, and weighs in at just over 8 pounds. Its 16 bit DSP is AF based, but Kenwood has done a decent job of designing out some of the problems that have plagued most AF based DSPs. There are optional SSB and CW filters available. The 1.8 kHz improves the already decent selectivity ratings compared to the other made-for-mobile offerings. However, if you're forced to use the noise blanker, the selectivity advantage disappears.
Speaking of optional devices, here's a good suggestion. Order the optional VGS-1 voice guide and storage unit. Like the Icom IC-7000, it reads out all of the vital settings in the radio, and it also allows recording up to 90 seconds (3 x 30 seconds) of audio. The audio can be used to record, and play back any transmission, as well as CQ and CW messages. It is well worth the $80 it sells for.
The funny looking serrated plate shown in the photo is the mobile mounting bracket for the head, which is attached with double-sided sticky tape (and optional self-tapping screws). For some, this could be a drawback. If you use this type of mounting, remember this: Some automotive surfaces can be damaged and/or stained by the tape. Wherever you mount it, make sure is well out of reach of any SRS device. That virtually rules out the top of the dash as shown in their advertising brochures. By the way, over their life time, vinyl plastics continually secrete volatile polymers, especially in hot weather. These polymers decrease the bond of most double-sided sticky tapes with predicable results.
The 200 watt (Hx) version requires two power hookups (or two separate factory power supplies if used as a base). These can be combined into one feed, but users should remember the radio draws about 40 amps, so heavy duty wiring is a necessity.
Both versions have two cooling fans, so full power, key-down operation is possible (30 minute limit, 25°C ambient). I've not heard folks complain about the noise they make when operating mobile, but to me they are a bit noisy. One thing to keep in mind, the main body of the radio requires good ventilation clearance on both ends which might negate some mounting locations, under seat for example. The Hx version also gets very warm, hot actually, in normal SSB operation, so don't be alarmed if it does.
The manual has an interesting comment, which proves not everyone understands the origins, and cures for mobile egressed RFI. It states in part; If there is excessive noise, use suppressor spark plugs (with resisters as all new vehicles come equipped with), and/or DC line filters to reduce the electric noises. While the former suggestion might help, if you have to resort to using brute-force DC line filters, you haven't installed your equipment correctly.
The TS-480 sports a CAT interface similar to those on the TS-2000, and there are quite a few after-market accessories which will work with this radio. Lastly, the two coax connectors are installed on dongles, rather than hard-mounted on the chassis. This fact could be a drawback for those who R&R the transceiver regularly.
One often expressed virtue of the TS480, is that it can be had in a SAT version, which sports an internal auto-coupler. Apparently, there is a misunderstanding about matching HF mobile antennas, that leads people to this conclusion. Like almost all built-in ones, the maximum matching range is up to a 3:1 SWR. In a mobile scenario, this will about double the the bandwidth of a monoband antenna, which in reality isn't much of an improvement on 80 or 40 meters. Further, using one with a remotely-tuned antenna is problematic at best. The Hx version, at 200 watts PEP output, makes the need for a mobile amplifier all but moot. So my vote goes to the Hx version!
The new (2010) Ten Tec® Eagle® (model 599) isn't what I personally would call a mobile transceiver, although it is, in part, advertized as one. At 2.9" x 8.5" x 10.25", and about 8 pounds, it does qualify I suspect. It is not remotable. If nothing else is in evidence, it is the most expensive (usable as a mobile) transceiver ever! The MSRP is $1,995 for the model with an antenna tuner, and $1,795 for the one without. By the way, that is exactly what you pay as Ten Tec only sells direct to consumer! But, that's not all. The mobile mounting bracket is $50, an optional 1.8 kHz SSB filter is $125, the noise blanker option (with just two selectable levels) is $49. It does come with a 2.4 kHz roofing filter, but there is room for three more at $125 each. That adds up to a very expensive mobile radio!
The display is monochrome, but you can change the background color (256 unique colors). It also has 16 levels of brightness, albeit difficult to change while driving down the highway at 70 mph. The specs aren't all that bad. It has two DC output ports, but at just .5 amps maximum draw, don't expect to power your screwdriver antenna with one.
One very curious feature; the fuse is located on the back panel of the radio, right next to the chassis-mounted Anderson Power Pole Connectors. On-line photos do not show fuses in the optional DC power cable ($49), a fact I would question. All is not bad, however.
While I personally am not a lover of all things Ten Tec®, they do have a very fine reputation of customer service, and support. On-line blogs support that scenario. If you're in the market for a rather high-priced, miniaturized transceiver, I suspect the 599 might fit the bill for some folks.
Regardless of TenTec®'s stance, I personally don't believe the 599 is a viable mobile transceiver, if for no other reason than its lack of remote control capability. And, by the time you've purchased the optional hardware to bring it up to snuff with its competition, you've spent over $2,200! That is indeed heady territory.
The Yaesu FT-450D is a 160 through 6 meter, 100 watt transceiver. It is a bit large for a mobile (9 x 3.3 x 8.5 inches), cannot be remoted, and it doesn't have VHF capability. Whether the size and these missing features are a drawback, depends on your needs.
It has about the same attributes most of its competitors have, including an excellent IF-based DSP. There's also a 10 kHz bandwidth roofing filter located in the first IF, right after the first mixer. This not only increases selectivity, it improves the performance of the DSP. It has two voice memories, but they're both just 10 seconds long, as compared to 30 seconds times four for the Icom IC-7000.
There are a couple of features that are very unique. One of those is the PTT TOT (timeout timer), a feature every transceiver should have! If you happen to sit on your microphone and key the radio, the TOT will shut down the transmit. It is adjustable from 1 to 20 minutes. The other is the automated CW beacon. I can't imagine someone using it mobile, but if you're into 6 meters, you just might.
All is not rosy, however. The microphone gain is a menu-selectable LOW, NOR, HIGH, and the latter two automatically turn on the speech processor. While there are menu adjustments for the DSP microphone equalizer, finding the right setting isn't easy, especially if you close talk your microphone (which you should do in any case). If you use a Heil Traveler®headset, you'll also find the lack of fine settings exacerbating. There is an internal adjustment (Maintenance Menu), but it is not something you want to play with unless you have the right equipment. The golden screwdriver folks probably will mess with it anyway.
Just as quirky, is the fact there is no separate RIT control in the original FT-450. Instead, you have to push the RIT button, and adjust the receive frequency offset with the main tuning knob. This may not sound like too much of a problem in a mobile scenario, but it is if you work a lot of nets. The FT-450(D) allows you to reprogram the DSP/Sel knob to use it instead. Whether this is a fix depends on the user.
As stated elsewhere, transceiver manufacturers seemingly have a hard time designing menu settings to be intuitive, and ergonomically easy. Although the FT-450D is better than some, it still lacks ease of use, especially in a mobile setting. Again, the best way (read that as safest way) is to learn the settings verbatim, or at least keep the manual handy.
Unlike its little bother the FT-857, the FT-450D has a complete set of CAT commands, which makes computer interfacing a breeze. In fact, a lot of the existing Yaesu, after-market accessories which use the CAT commands will work with this radio. Incidentally, the commands are virtually identical to those of the FT-950.
Like most current models, the cooling fan is temperature controlled, and a bit noisy when it is on high speed. The LCD display is pleasantly large, and easy to read. Street price is about $699. There is a version with an internal auto-coupler ($770), and a mobile bracket is available.
By the way, the "D" version added both a 300 Hz, and 500 Hz, CW DSP filter presets. It also sports a built-in (instead of optional) antenna tuner, and the keys are backlighted. Unfortunately, both the oddball microphone gain control, and quirky RIT adjustment remain, albeit the latter is now programmable.
The Yaesu FT-857(D) certainly has a popular following, in spite of several drawbacks, not the least of which is its 12+ year-old design. The main one is its small, orange-tinged display. Contrary to to the popular press' claims, it isn't any easier to see in daylight than its competitors.
The front end sensitivity (even in the D model) takes a back seat to every other current offering. To be honest, in a mobile scenario this fact isn't particularly important, but could be under the right (wrong?) circumstances. The transmit keying line can handle most mobile amplifiers without a keying buffer, which is convenient. However, if you use an auto coupler or a tune device, and an amplifier, you'll have to build you're own "Y" adapter cable.
The power cord is actually a dongle, and an extension cable with the fuses included which might be a drawback if you R&R the radio frequently. There is another, potential drawback, if you use one of the many after-market devices which draw power from the radio (i.e. antenna controllers). The rear panel ports are protected with a 3.5 amp, surface-mounted fuse. It is not an easy task to replace, and requires special tools. In my opinion, this negates using the ports for screwdriver antenna power.
There are several others in popular use, albeit in legacy form. Certainly the Yaesu FT-100D, SGC® 2002, Kenwood TS-50, TenTec® 555 Scout®, and others are in this category. If you're still using one of these transceivers, and it is giving you good service, there's probably no reason to upgrade (if you're satisfied). However, like the Atlas mentioned above, finals for these transceivers are getting scarce, and in some cases, nonobtainium. If cost is an object (it should be), if and when the finals fail, you're much better off junking the radio, rather than attempting to repair it. It is, after all, a cost-benefit equation with no clear solution.
The power handling capability of both the tuner port and the accessory jack of most miniature transceivers is limited. A lot of after-market devices, including some screwdriver controllers, antenna tuners, and digital interfaces, use these ports for power. Icom states you can draw power up to one amp from pin 8 of the accessory jack. Although no specs are published about the current draw from pin 3 of the tuner port, most folks assume up to one amp is okay as this is what the AH-4 draws when it is tuning. Don't try to draw more than one amp total for both ports!
These ports are fused (3.5 amp SM for the FT857, 4 amp 3ag for the 706, and 5 amp AGO for the 7000), and all are switched on and off by a switching transistor and/or a small relay. If you short either of these ports to ground, there are three failure scenarios. First, the fuse will blow which doesn't happen often. Secondly, the switching transistor will fail (usually open). And lastly, and most likely, a circuit board trace will melt. The latter two failures are costly ones to repair.
Further, the voltage drop across these ports with a one amp load imposed on them, is typically 1 volt less than supply voltage. While this might be okay for short durations like the tuning cycle of an AH-4 or other tuner using the port for power, long term draw means that 13 watts or so of heat is being absorbed by the radio's circuitry. I'm of the opinion that if you need the radio to supply switched power to an ancillary device, you should use a properly buffered relay to do the task. Or, use a PowerWerx APO3 as described below.
Rear panel jacks are often surface mounted. Even a minor bump can dislodge them from their circuit board. In the case of the 7000, it takes about 2 hours to fix because you have to R&R the main board too. Assuming, of course, that you're adept at working on surface mounted devices, that you have the tools to do so, and the circuit board hasn't been damaged. If you're not adept, this is a costly repair (about $150). Forewarned is forearmed, so even if you have the main unit hidden under a seat, protect the rear apron from impact. It is also advisable to use angle plugs (90°), rather than straight ones.
If you use the front jack to power a speaker, and the audio level is very low, check to make sure the switch on the back of the head is set for speaker.
The various Icom models, and most all of the other miniature radios on the market, use the same basic circuitry to control several functions. The power out, SWR, and ALC meter readings; the SWR power fold back protection; the ALC fold back protection; and the over-temperature, two-speed fan control are all part of one basic module. Aside from the fact that the built in meter's accuracy is suspect to begin with, when any of the other functions are doing their individual protection bits, the metering becomes virtually useless. For example, when the fan is running, the SWR readout is higher than the power out when transmitting into a dummy load. At the same time the ALC will read full scale on one band, and have no indication on another. This regardless of the control settings. The long and short of this is obvious. Don't rely on the internal meter for any indication unless the transceiver is (dead) cold and the output is into a dummy load. Even then, it is suspect.
Due in part to their size, a lot of manufacturers use modular jacks and plugs for both microphone and remote cables. While they look similar to RJ45 telephone jacks and plug, they aren't! Here is some more information on Cabling.
Some radios don't have an automatic off feature, which can lead to a dead battery. The PowerWerx APO3 is the best solution to this problem. However, the APO3 is more than just a timed (0, 5, 10, 20 minutes), auto off device. But, before you dismiss the APO3 because your radio has an auto-off feature, who says you have to use it to control your radio?
As I said above, there is just so much power you can safely draw from the radio itself. Since the APO3 is equipped with Anderson Powerpole connectors, expanding the device is easy. For example, you could use it to feed power to their 4005 RigRunner, and automatically switch all of your ancillary devices (wattmeters, powered speakers, etc.). This results in less wire, wiring, switches, and a lot of headaches.
Here's how it works. There are four pre-programmed voltages (11.8, 12.1, 12.7, 13.05 volts) settings. Properly programmed, the APO3 will turn off, and on, your radio just by monitoring the battery voltage! Remember, static battery voltage is about 12.4 volts, and at least 13.5 volts when the engine is running. Since it monitors the voltage, it knows when to turn the radio off and on. There's also a 10 minute off delay which avoids unnecessary operation (cold weather, heavy accessory load, etc.). It switches 20 amps, and can handle up to 30 amps, making it compatible with almost any radio. At $60 (MSRP) it is also affordable. Visit their web site for more information.
One caveat. Some radios are switched on electronically. Once the APO3 powers up, you'll still need to push your radio's on button.
What To Do About Heat
One of the drawbacks to miniaturization is heat dissipation, and it can be a big problem in mobile installations, so in all cases there is a heat sink fan. The fan can run during receive, and anytime the transceiver is in transmit. While they're not very noisy they do increase the power draw by about 1 amp. Too little heat, better yet a lack of it (read that as cold), can cause stability problems in oscillators and in some cases cause failure of a liquid crystal display (LCD). Too much heat and the life span of solid state devices fall like a rock, and LCDs to blanch out or fail altogether. In any case, it is not something most amateurs loose sleep over.
We would all like to think that transceivers designed for mobile operation take into account the wide temperature extremes encountered, but this is isn't necessarily so. For example, the Icom IC-706 is rated at a usable frequency range of +14°F to +140°F. While one would think this is adequate, the fact is there are lots of places where temperatures are much lower, and can be much higher too.
Cooling fans typically run anytime the heatsink exceeds ≈150°F. If you have the transceiver mounted in the trunk under the package shelf, the heatsink could easily exceed 150°F even when the outside temperature is moderate. If your transceiver doesn't have an automatic off feature, you might come back to a vehicle with a dead battery. For example, with the fan running, an Icom IC-706 draws nearly 5 amps in receive. Over time this will drain the hardiest of batteries
Pay attention to your ALC meter reading. Any ALC indication (especially an Icom IC-706) is too much. If it starts to rise off the peg, you're driving it too hard. In either case the transceiver is in a protection mode. This situation can and does cause excessive IMD products to be generated and should be avoided.

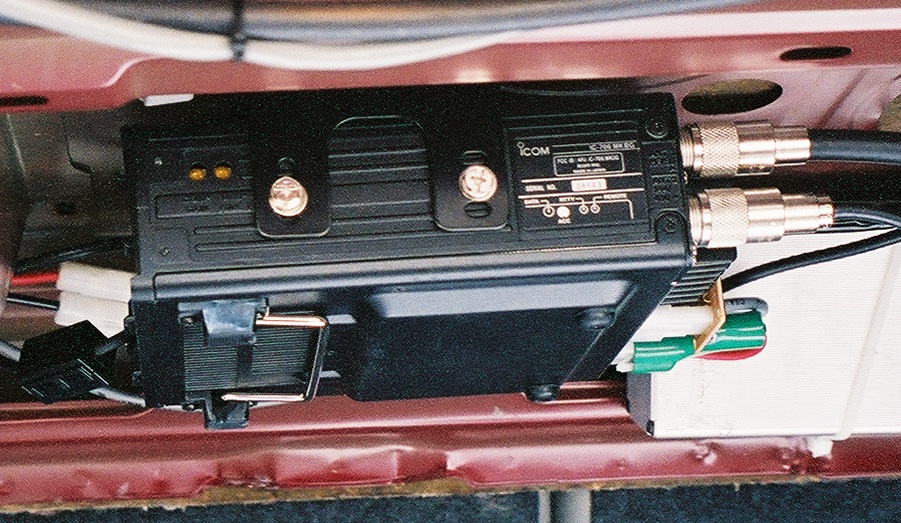

Heat rises so it is always better to mount the main unit under a seat or on the floor of the trunk rather than under a package shelf or where the sun can shine directly on it. This will help minimize any heat related problems. Make sure you set the auto-off function, or buy a PowerWerx APO3.
Any piece of electronic equipment should be well ventilated. A common mounting scheme is to use an unused DIN slot or ashtray receptacle to mount the transceiver into. This makes them convenient, but in some cases, the requisite ventilation is inadequate. Worse yet, in some vehicles this allows the heater vent to exhaust directly on to the heatsink with predictable results. In one case I'm aware of, the heatsink of a 65 watt 2 meter transceiver got hot enough to melt the plastic sides of the center console. This could have been disastrous. Thankfully it wasn't.
There is a lot more to mobile installations than throwing the rig in the car and taking a trip. It requires safety mindfulness, forethought, due diligence, attention to detail, and it takes time to do it correctly. Heat considerations are only part of the equation. You might not have ever had a problem (or be aware of one) with heat in your mobile installation. This means just one thing; Murphy hasn't discovered you're operating mobile.
Transceivers shouldn't be mounted directly to a surface, whatever it is. Rather, the factory-supplied mounting bracket should be used to hold the radio away from the mounting surface. The allows air to flow freely around the transceiver. This is also true of solid state mobile amplifiers. Most are designed to provide a nominal 500 watts PEP output, albeit some are 300 to 400 watts PEP. In order to generate this amount of output power, they input about twice their output (50% efficiency). Depending on the user's speech pattern (average to peak ratio), the amplifier's heatsink is dissipating between 125, and 250 watts. As with transceivers, adequate ventilation is an absolute requirement!
Almost without exception, every solid state rig out there has a low voltage limit. Under this limit and the rig will reset or shut down. For the average Icom, this is 11.6 volts, which is about nominal for the rest of these small wonders. If the rig is on when you start your vehicle (usually in cold weather), the battery voltage can momentarily drop to 8 volts or less. While the duration isn't very long, it is enough to cause the aforementioned problems. A trunk-mounted, second battery will alleviate the problem.
Another solution is to buffer the supply with a large Farad rated capacitor like those used in mobile sound systems. Units as large as 10 Farads are available. Before you run right out and buy one, there is a caveat or two to consider.
First, don't be fooled! A Farad capacitor can be very dangerous. When fully charged and subjected to a dead short, the instantaneous current can exceed 500 amps! This dictates proper fusing and wiring, including a protective diode across the capacitor. Nonetheless great care should be used when charging them, so following the manufacturers instructions is imperative.
If you ever need to jump start the vehicle, remove the capacitor's fuse first! If you don't, and the capacitor gets hooked up backwards, or the input voltage rating is exceeded (+20 VDC), the capacitor will fail catastrophically. Please use extra care if you take this route.
There is another voltage related issue that should be mentioned, and that is voltage in, versus power out. At a nominal 13.8 VDC, most of the aforementioned radios will output their rated power. Lower the input voltage to 12 VDC, and none of them will. Driving them harder to make up for this loss is not the solution. I also discuss this in my VHF Options article.
Menus & Options
Another major drawback is the menuing system (by no means is this an Icom-only scenario). Are they intuitive? You've got to be kidding! In all fairness I must say this is a personal opinion. I'm sure some folks like the way the menus are set up. Thankfully there are so many variables it actually fulfills the desires for almost every operator. But wouldn't it be nice if they made the menus user adjustable? Of course if they did, who would be able to program it? And isn't that the point? It is hard enough now I suspect. In the final analysis the real problem is learning the menus. If the users would just take the necessary time to learn them verbatim, things would be easier. Incidentally, Nifty Accessories (see photo) has a line of mini-manuals for all of the popular mobile radios. They contain all of the programming information that the owners manuals do, but with out the size and heft. They're a great mobile tool.
I have a few suggestions for buyers of these small wonders regardless of brand. Buy the narrowest SSB filter you can buy. For the Icom IC-706, this is a 1.9 MHz (the IC-7000 uses DSP). If you're into CW, opt for the 250 Hz filter. While this may seem extreme at first glance, just remember you're not dealing with a base transceiver environment, you're dealing with a mobile environment. One in which you'll need all the signal definition you can get! One more thing. If the transceiver has an optional voice synthesizer to read out the frequency, buy it! You'll be glad you did.
One more thing every reader should keep in mind. Although these miniaturized wonders are the answer to many prayers, they can be a double edged sword. Just because they are light, small, and easily mounted, cutting corners with respect to mounting could be a disaster in waiting. In other words, just because they're small doesn't mean you should use Velcro or double-sided sticky tape to mount the various parts. Like any other object inside a moving vehicle, if it isn't tied down properly, it can become a flying missile during a crash. A missile which can cause great physical harm. It pays to take your time, and do the job correctly.
One menu item you want to avoid using, and that's compression. There are several reasons why you shouldn't, not the least of which is the additional heat generated. If you just can't help yourself, you best read the Audio Transmit article.
This subject is a repeat from my Safety article.
Not all headsets are created equal. Modifying a telephone headset is a questionable project. The impedances are not correct, and the audio quality is substandard as a result. Proper matching is especially important for Icom radios. Heil Sound makes a mobile headset designed to perfectly match the Icom's input requirements (models are available for Yaesu, Kenwood, and many others). It has a single earpiece, an adjustable microphone boom, and a PTT button in the cord.
I use my Heil Traveler® frequently around town, and it is standard fare on trips. Because of the differences in audio quality and gain offered by the Heil Traveler®, it maybe necessary to readjust your microphone gain, and perhaps the carrier offset (Icom menu G6) to achieve all of the benefits it offers.
Another item to watch is the receive audio level. Headsets require far less amplification than speakers do. Being so close to your ear, excessive volume can and does cause hearing loss. Just as a sidelight, here is an interesting site about noise pollution.
The accessory jacks in most transceivers are typically designed for ancillary equipment from the same manufacturer. In the case of the Icom 706 this could be the PW1 amp, or a AH-4 auto-coupler. They can be used for other purposes, but due caution is in order as the current limits are small. For example, the keying line (HSEND) in an Icom will only sink a maximum of 20 mils (200 mils for the IC-7000). This is inadequate for directly switching an amp (with two exceptions; SG500, and THP HL-450B).
This shortcoming is also inherent in Yaesu radios. The voltage drop problem is there too. Even with no load, the accessory jack output voltage will be approximately 1 V less than the actual supply voltage. Under the maximum load of 1 amp, they can be 2 volts less! If you're using these jacks to power ancillary equipment, due caution is necessary. If you exceed Yaesu's 3.5 amp limit, you either blow the internal surface-mounted fuse (it is a mess to replace), or worse burn a circuit trace. If you power an external device, it is prudent to use a small transistor driven relay with proper fusing to minimize the risks. If you're using a mobile amp, read my Amplifiers article.
There is another problem with them when the units are operated mobile; voltage stability. Unlike a regulated base power supply, mobile DC input voltage can range from 11 to over 14.2 VDC while transmitting, and the accessory output voltages vary accordingly. This fact negates the use of some of the functions. For example, Icom and Yaesu both have outputs which can be used to automatically band switch an amp (or antenna switch). Because the reference voltage and the band select voltage are unstable in mobile operation, they cannot be used for their intended purposes.
With the aforementioned in mind, it is always best to power ancillary equipment directly, via a RigRunner or similar power tap device.
Odds & Ends
Hands-on experience is worth more than a thousand opinions. Make sure you go through all of the menus, and all of the manuals. Spend extra time on the memory entry portions, and then try and program the demo units. If you can't do it in the store, how are you going to do it when you get home?
Now is the time to buy accessories. Most dealers (not all) discount accessories if you buy them with the radio. Don't scrimp on extra filters, audible readouts, digital boards, or what ever extra cost accessories are applicable. They make the radio easier to use, and easier to sell when the time comes to upgrade.
I don't like eBay and other on-line auction houses. If you buy a radio sight unseen, you're at the mercy of the seller. While a lot of eBay sellers are honest people, some are not, and you cannot tell by reading the reviews.
If you are buying your first radio, don't buy a handheld! They're nice and geeky, but their utility wears off very quickly. Always think about amateur license upgrades when buying. You'll never regret it.
